Car seat pressure sensor
Home  > Products  > new category  > Car seat pressure sensor  >

Car bus Seat occupant detection sensor detector weight gravity reminder alarm alert warn passenger seat occupancy sensor

Car bus Seat occupant detection sensor detector weight gravity reminder alarm alert warn passenger seat occupancy sensor
Sea freight
Quick Details
Place of Origin:Guangdong, China
Brand Name:Unigreat
Warranty:60 Months
Model Number:JYS-N-180801
Car Make:CAR and BUS
Working principle:Contact points sending signal
Tail/Pin/Circuit Layout:Based on customers detailed requests
Life Expectancy:More than 5 million times
Atmospheric Pressure:86 ~ 106 kPa
Loop Resistance:50Ω 150Ω 350Ω or based on design
Wire Lead Resistance:<1Ω/cm
Tail Bending Performance:≤180°
Pinout gap standards:2.54, 2.50, 1.27, 1.25 mm
Contact Resistance:1Ω--10Ω
Dimension:According to Customer's Demand
Video Description

Car bus Seat occupant detection sensor detector weight gravity reminder alarm alert warn passenger seat occupancy sensor



Product Description

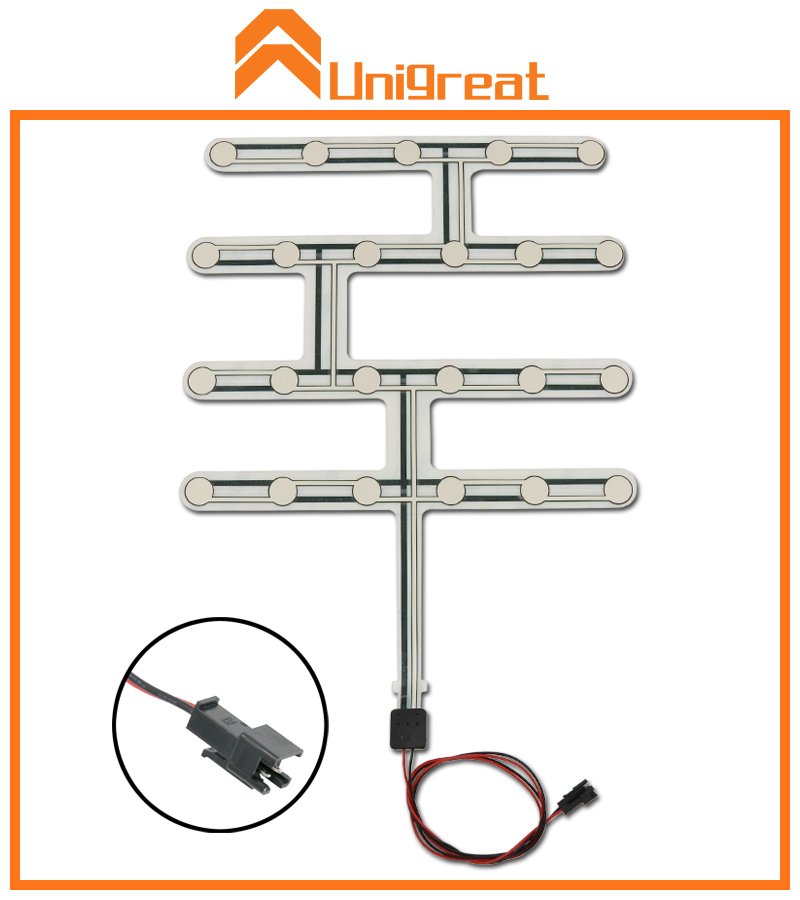

What is car/bus seat pressure membrane sensor ?


The Car seat sensors is a film type contact sensor, the Car seat sensor's contact points are evenly distributed on the seat's stressed surface, Car seat sensors Generate a trigger signal when the seat receives a pressure from the outside. The Car seat pressure sensors applies to the car seat occupancy perception system, Such as car seat belt alarm sensor system, Taxi automatic meter, car Airbag sensing system and Driver's departure sensing. For example with this Car seat sensor, It can sense whether there are people on the seat or not, Airbags will not open if there is no one. When the driver leaves the seat, the car will automatically return to neutral. People Design car seat sensor shape and contact points' sensitivity According to the car seat's shape, hardness, and skin tightness.


The car seat pressure sensors usually contain four layers, up circuit layer, between adhesive layer, down circuit layer and back adhesive layer. Other accessories are wire cables and connectors.


Similar Products Images.

Basic Properties .

                                              Electrical Properties:

Rated Voltage

50V DC

Rated Current


Operating Power


Insulation Resistance

100MΩ (250V DC)

Loop Resistance

10Ω~2kΩ (based on the design)

Contact Resistance

0.5 ~ 5Ω

Wire Lead Resistance


Base Material Voltage Withstand

1500V DC

                                           Mechanical Properties:

Life Expectancy

More than 10 years (more than 5 million times)

Operation Force

More than 500g

Tail Bending Performance



20G's max.


0.7~2 mm

                                          Environmental Properties:

Operation Temperature

-40°C to +90°C (-40°to 176°F)

Storage Temperature

-40°C to +90°C (-40°to 185°F)

Atmospheric Pressure

86 ~ 106 kPa


+40°C, 90%~95%RH for 480 Hours


The Structure and Working Principle of car seat pressure membrane sensor.

Working principle:

When someone is sitting on a car seat, The car seat surface is subjected to a pressure, This pressure makes the upper and lower circuit layers of the seat sensor contact each other, Thus, the circuit loop is turned on conductive to generate a signal to other devices, Showing someone is sitting on the car seat, and, other systems in the car will use this signal to work, For example, the seatbelt warning system will detect if the person on the car seat whether put a seat belt on himself.


Other Features.


                                             Other Features

Artwork/Drawings Format

CorelDraw, Adobe Illustrator AI, AutoCAD

Tail/Pin/Circuit Layout

Based on customers detailed requests

Antistatic Shielding

Can be added For Protection


Female/Male Connectors or ZIF Connector

Rear Adhesive:

3M467, 3M468, 3M9080 etc…


Extension of Circuit and Connect with your Device

Printing Method

Silk Screen Printing/Digital printing

Silk screen printing ink type

Silver paste, Carbon paste, dielectric oil.


ISO9001  RoHS  CE  SGS E-mark

Car bus Seat occupant detection sensor detector weight gravity reminder alarm alert warn passenger seat occupancy sensor, Car bus Seat occupant detection sensor detector weight gravity reminder alarm alert warn passenger seat occupancy sensor

Production Process.

Quality Control.


Wide range of applications:

The membrane film pressure seat sensors are widely used in many fields. It is used in Car field, Bus field, Train field and Plane field. So far, the seat pressure sensors are very important to all industrial fields and daily life fields.

Packaging & Shipping

Packaging: Normally a certain amount of products into poly bag, then packed into master carton. Or customized packed.

Shipping: Via Air Express like DHL UPS FedEx TNT, or Via Sea shipping.

Customized Solutions

Our Advantages:


1.We are a factory with total about 500 staff, 200 thousands square meter. Throughout production process our quality is strictly being controlled with detailed record. All of our machines were upgraded ONE year ago and brand new.


2.With more than 18 years experiences of 10 Designers and 18 Engineers, so customized product service is No problem, we can offer you the best solutions.


3.You will get fairly competitive prices with fantastic quality products. Also the packaging, delivery time and after-sales services are guaranteed, we have a powerful and professional team.

Company Information

UNIGREAT was founded in 2001 in Shenzhen Nanshan Xili Town, formerly known as Jia Yi Da Hardware Plastic Factory. In 2004 we moved to Shenzhen Bao’an Shiyan Shilongzai for expanding the scale, now we own UNIGREAT industrial park over 200 thousands square meter. Since then we bought many machines , such as big plastic injection machines, large CNC machines, electrical discharge machines, and wire-electrode cutting machines.


Meanwhile, the Membrane Switch Department/ Decoration Panel Department/ IMD Department were established, together with Mould Department and Injection Department now we have 5 Departments, total staff more than 500 people. Also we purchased more important machines like Automatic screen-printing machines, Infrared Drying machines, Automatic cutting machines, and Automatic Laser Cutting Machines.


With more than 18 years serving The world's top 500 companies like Midea, Gree Flextronics, Haier, LG, Samsung and Galanz, we are qualified to serve oversea customers and brands. Choose to cooperate with us, you will have totally fresh and fantastic experiences.
