Car school bus train plane safety belt seatbelt remind warn alert airbag pressure gravity weight sensor transducer
B站不支持收货地址
B站不支持库存规格
OE NO.
0005
Lead_Time
1 - 100(Pieces):5(days),101 - 1000(Pieces):12(days),1001 - 10000(Pieces):20(days),>10000(Pieces):Negotiable(days)
samples
$4.50/Piece, 1 Piece (Min. Order)
shipping
Sea freight
Customization
Customized logo (Min. Order: 10 Pieces),Customized packaging (Min. Order: 10 Pieces),Graphic customization (Min. Order: 10 Pieces)
参数暂无数据
多属性暂无数据
B站不支持优惠卷
暂无分享
B站不支持产品保障
Overview
Quick Details
Place of Origin:Guangdong, China
Brand Name:unigreat
Warranty:2 Years
Type:PRESSURE SENSOR
Model Number:JYS-004
Car Make:bus car
Product Name:Pressure Sensor
Certification:ISO9001:2008
Material:PET Film
AUTO SENSOR:Car Sensor membrane
Working principle:Contact points sending signal
Rear Adhesive:3M467, 3M468, 3M9080 etc
Thickness:0.5-1.0mm
Working Current:≤ 100mA
Rated Voltage:≤50V DC
Name:baby car seat pressure alarm occupancy sensor

Car school bus train plane safety belt seatbelt remind warn alert airbag pressure gravity weight sensor transducer





What is car/bus seat pressure membrane sensor ?

The Car seat sensors is a film type contact sensor, the Car seat sensor's contact points are evenly distributed on the seat's stressed surface, Car seat sensors Generate a trigger signal when the seat receives a pressure from the outside. The Car seat pressure sensors applies to the car seat occupancy perception system, Such as car seat belt alarm sensor system, Taxi automatic meter, car Airbag sensing system and Driver's departure sensing. For example with this Car seat sensor, It can sense whether there are people on the seat or not, Airbags will not open if there is no one. When the driver leaves the seat, the car will automatically return to neutral. People Design car seat sensor shape and contact points' sensitivity According to the car seat's shape, hardness, and skin tightness.

The car seat pressure sensors usually contain four layers, up circuit layer, between adhesive layer, down circuit layer and back adhesive layer. Other accessories are wire cables and connectors.

Similar Products Images.

Basic Properties .

Electrical Properties:

Rated Voltage

50V DC

Rated Current

100mA

Operating Power

1W

Insulation Resistance

100MΩ (250V DC)

Loop Resistance

10Ω~2kΩ (based on the design)

Contact Resistance

0.5 ~ 5Ω

Wire Lead Resistance

<1Ω/cm

Base Material Voltage Withstand

1500V DC

                                         Mechanical Properties:

Life Expectancy

More than 10 years (more than 5 million times)

Operation Force

More than 500g

Tail Bending Performance

180°

Vibration

20G's max.

Thickness

0.7~2 mm

Environmental Properties:

Operation Temperature

-40°C to +90°C (-40°to 176°F)

Storage Temperature

-40°C to +90°C (-40°to 185°F)

Atmospheric Pressure

86 ~ 106 kPa

Humidity

+40°C, 90%~95%RH for 480 Hours



The Structure and Working Principle of car seat pressure membrane sensor.

Working principle:

When someone is sitting on a car seat, The car seat surface is subjected to a pressure, This pressure makes the upper and lower circuit layers of the seat sensor contact each other, Thus, the circuit loop is turned on conductive to generate a signal to other devices, Showing someone is sitting on the car seat, and, other systems in the car will use this signal to work, For example, the seatbelt warning system will detect if the person on the car seat whether put a seat belt on himself.

                                            Other Features

Artwork/Drawings Format

CorelDraw, Adobe Illustrator AI, AutoCAD

Tail/Pin/Circuit Layout

Based on customers detailed requests

Antistatic Shielding

Can be added For Protection

Connector

Female/Male Connectors or ZIF Connector

Rear Adhesive:

3M467, 3M468, 3M9080 etc…

Cables

Extension of Circuit and Connect with your Device

Printing Method

Silk Screen Printing/Digital printing

Silk screen printing ink type

Silver paste, Carbon paste, dielectric oil.

Certificate

ISO9001  RoHS  CE  SGS

Car school bus train plane safety belt seatbelt remind warn alert airbag pressure gravity weight sensor transducer

Car school bus train plane safety belt seatbelt remind warn alert airbag pressure gravity weight sensor transducer

Production Process.

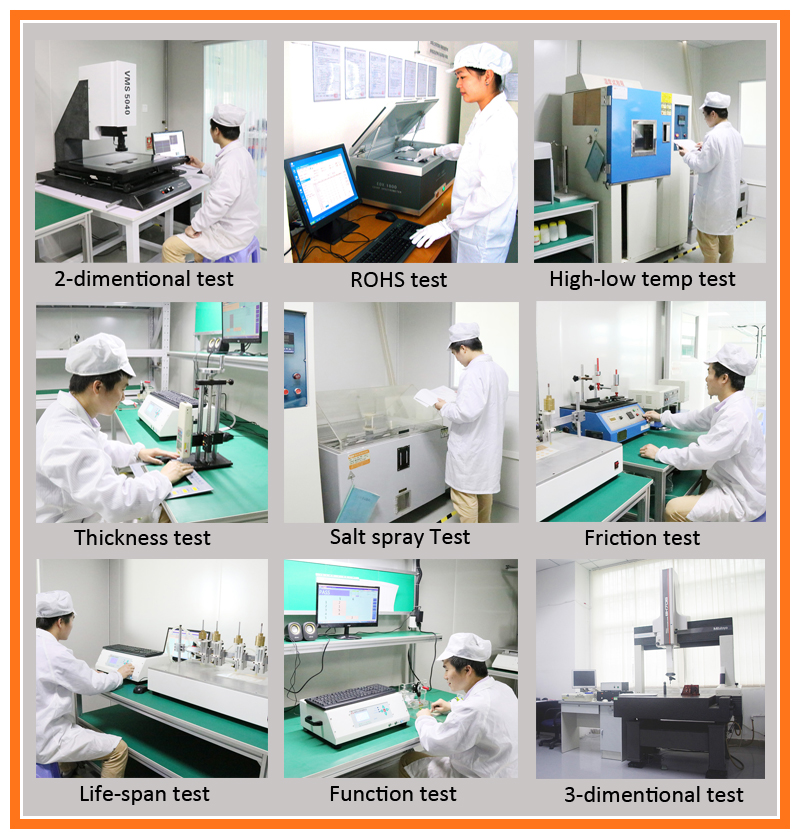

Quality Control

Wide range of applications:

The membrane film pressure seat sensors are widely used in many fields. It is used in Car field, Bus field, Train field and Plane field. So far, the seat pressure sensors are very important to all industrial fields and daily life fields.

Packaging & Shipping

Customized Solutions

Our Advantages:

1.We are a factory with total about 500 staff, 200 thousands square meter. Throughout production process our quality is strictly being controlled with detailed record. All of our machines were upgraded ONE year ago and brand new.

2.With more than 18 years experiences of 10 Designers and 18 Engineers, so customized product service is No problem, we can offer you the best solutions.

3.You will get fairly competitive prices with fantastic quality products. Also the packaging, delivery time and after-sales services are guaranteed, we have a powerful and professional team.
