Decorative PMMA panels tempered glass touch switch panel laboratory appliance control board

Decorative PMMA panels tempered glass touch switch panel laboratory appliance control board
Sea freight
Customized logo (Min. Order: 1 Pieces),Customized packaging (Min. Order: 1 Pieces),Graphic customization (Min. Order: 1 Pieces)
Quick Details
Place of Origin:Guangdong, China
Brand Name:Unigreat
Model Number:JYS-N-190325-02
Max. Current:10 A
Max. Voltage:220-250 Volt
Mechanical Life:More than 10 million times
Size:290*180*20 mm
Humidity:+40°C, 90%~95%RH for 240 Hours
Atmospheric Pressure:86 ~ 106 kPa
Operating Voltage:≤ 100VDC
Material:PMMA(acrylic)/tempered glass
Min. Voltage:3V
Dimension:According to Customer's Demand
Circuit:Printing silver ink on PET
Window:Clear or Transparent Window
Surface Finish:Glossy or Matte
Working principle:Silver ink grid sensor
Video Description

Decorative PMMA panels tempered glass touch switch panel laboratory appliance control board

Product Description


What is Capacitive touch switch?


The touch switch is divided into two types, one is resistive touch switch and one is capacitive touch switch, according to the switch working principle. In many technologies, capacitive touch sensing technology has become the mainstream of touch sensing technology. Capacitive touch switch can make the product's appearance more beautiful. Capacitive touch switch can sense and penetrate insulating material with thickness more than 20mm, like tempered glass and PMMA, and it can accurately detects the effective touch position of finger. Capacitive touch switch's sensitivity, stability, reliability, etc. will not change due to changes in environmental conditions or long-term use, capacitive touch switch has wonderful waterproof and strong anti-interference ability.


Capacitive control switch does not require human body to directly touch the metal, so this completely eliminate safety risks. Capacitive control switch will not affected by the weather, humidity, temperature and human body resistance etc. Capacitive control switch is with no mechanical parts, no wear, unlimited life, it saves maintenance costs.


Panel patterns of Capacitive touch switch can be freely designed, the button size, shape, trademarks, and transparent windows also could be freely designed. It has beautiful appearance, fashion, no fading, no deformation, durable.

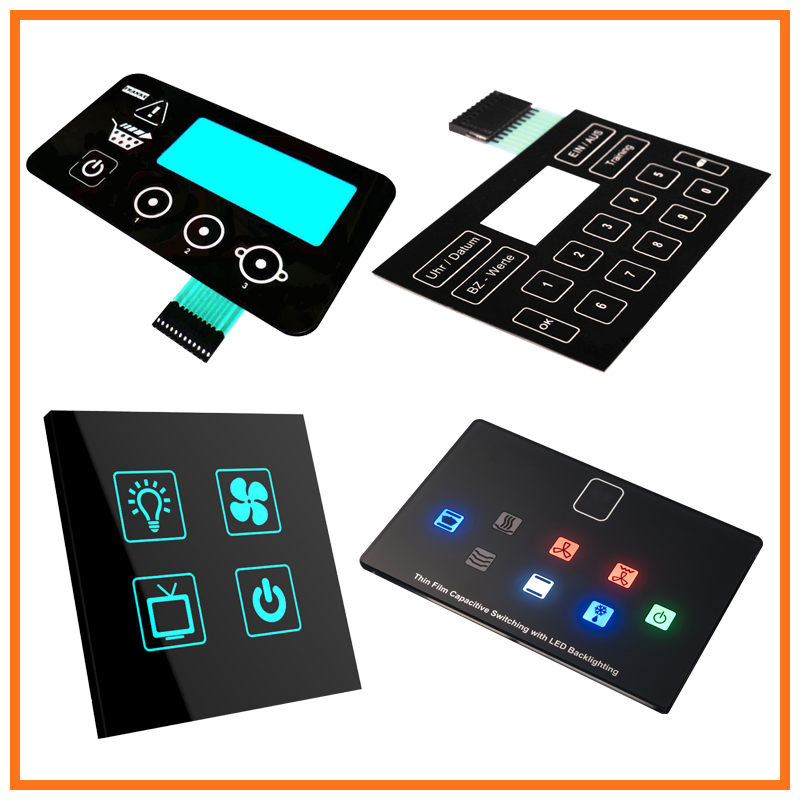

Similar Products Images.

Basic Properties .

                                        Electrical Properties:

Rated Voltage

100V DC

Rated Current


Operating Power


Insulation Resistance

100MΩ (250V DC)

Loop Resistance

10Ω~2kΩ (based on the design)

Contact Resistance

0.5 ~ 5Ω

Wire Lead Resistance


Base Material Voltage Withstand

1500V DC

                                         Mechanical Properties:

Life Expectancy

More than 10 years

Operation Force


Tail Bending Performance



20G's max.


0.7~20 mm

                                         Environmental Properties:

Operation Temperature

-40°C to +90°C (-40°to 176°F)

Storage Temperature

-40°C to +90°C (-40°to 185°F)

Atmospheric Pressure

86 ~ 106 kPa


+40°C, 90%~95%RH for 480 Hours


The Structure and Working Principle of Capacitive touch switch.


During a touch, capacitance forms between the finger and the sensor grid. The embedded serial controller in the touch screen calculates touch location coordinates and transmits them to the computer for processing.


                                            Other Features

Artwork/Drawings Format

CorelDraw, Adobe Illustrator AI, AutoCAD

Tail/Pin/Circuit Layout

Based on customers detailed requests

Antistatic Shielding

Can be added For Protection


Female/Male Connectors or ZIF Connector

Rear Adhesive:

3M467, 3M468, 3M9080 etc…


Extension of Circuit and Connect with your Device

Printing Method

Silk Screen Printing/Digital printing

Windows/Lens Coating

Can be added


ISO9001  RoHS  CE  SGS

Decorative PMMA panels tempered glass touch switch panel laboratory appliance control board ; Decorative PMMA panels tempered glass touch switch panel laboratory appliance control board

Production Process.

Quality Control.


 Wide range of applications:


Capacitive control switch are wildly used In Consumer electronics, Kitchen Appliances, Bathroom appliances, Air conditioners and other household appliances, Car alarm system, LED application, Lighting fixture application, Solar photovoltaic applications, Audio equipment, Mobile terminal tablet, Smart Electricity grid. And most of the products have been listed on the homes of ordinary family.


Capacitive control switch are wildly used In Kitchen appliances including refrigerators, sterilizers, kitchen ventilator, range hoods, gas stoves, ovens, water heater, intelligent door monitor, intelligent entrance guard, and microwave ovens. Capacitive touch switch also wildly used In Industrial Control, Military Products etc.

Packaging & Shipping

Packaging: Normally a certain amount of products into poly bag, then packed into carton. Or customized packed.


Shipping: Via Air Express like DHL UPS FedEx TNT, or Via Sea shipping.


Customized Solutions


Our Advantages:

1.We are a factory with total about 500 staff, 200 thousands square meter. Throughout production process our quality is strictly being controlled with detailed record. All of our machines were upgraded ONE year ago and brand new.


2.With more than 18 years experiences of 10 Designers and 18 Engineers, so customized product service is No problem, we can offer you the best solutions.


3.You will get fairly competitive prices with fantastic quality products. Also the packaging, delivery time and after-sales services are guaranteed, we have a powerful and professional team.


Company Information


UNIGREAT was founded in 2001 in Shenzhen Nanshan Xili Town, formerly known as Jia Yi Da Hardware Plastic Factory. In 2004 we moved to Shenzhen Bao’an Shiyan Shilongzai for expanding the scale, now we own UNIGREAT industrial park over 200 thousands square meter. Since then we bought many machines , such as big plastic injection machines, large CNC machines, electrical discharge machines, and wire-electrode cutting machines.


Meanwhile, the Membrane Switch Department/ Decoration Panel Department/ IMD Department were established, together with Mould Department and Injection Department now we have 5 Departments, total staff more than 500 people. Also we purchased more important machines like Automatic screen-printing machines, Infrared Drying machines, Automatic cutting machines, and Automatic Laser Cutting Machines.


With more than 18 years serving The world's top 500 companies like Midea, Gree Flextronics, Haier, LG, Samsung and Galanz, we are qualified to serve oversea customers and brands. Choose to cooperate with us, you will have totally fresh and fantastic experiences.



Other Related Products:

Our Customers:


Why choose us



Favorable Comments


Since 2001, UNIGREAT has designed and manufactured the best quality, OEM/ODM Membrane Switch, Capacitive touch Switch, Graphic Overlay, Precision Plastic Mould and Plastic Injection Parts, and then custom all kinds of Membrane Switch, Graphic Overlay, IMD Plastic Injection Parts, Plastic Injection Parts and High Precision Plastic Mould. All of the above products are engineered and manufactured in our own UNIGREAT industrial park which over 200 thousands square meter with 500 staff located in Shenzhen, China.


Decorative PMMA panels tempered glass touch switch panel laboratory appliance control board


Shenzhen Unigreat Technology Co., Ltd. pays high attention to outer packing to make sure that membrane switch will be alright even for long-distance transportation. Over the years we have developed increased competence in the establishment of membrane switch.
