Metal dome membrane switch
Home  > Products  > new category  > Metal dome membrane switch  >

OEM dash board panel for car membrane instrument sticker overlay

这里可以自定义设置
OEM dash board panel for car membrane instrument sticker overlay
B站不支持收货地址
B站不支持库存规格
Lead_Time
1 - 10(Pieces):7(days),11 - 1000(Pieces):10(days),1001 - 10000(Pieces):15(days),>10000(Pieces):Negotiable(days)
samples
$0.88/Piece, 1 Piece (Min. Order)
shipping
Sea freight
Customization
Customized logo (Min. Order: 1 Pieces),Customized packaging (Min. Order: 1 Pieces),Graphic customization (Min. Order: 1 Pieces)
参数暂无数据
多属性暂无数据
B站不支持优惠卷
暂无分享
B站不支持产品保障
Overview
Quick Details
Place of Origin:Guangdong, China
Brand Name:Unigreat
Model Number:JYS-N-191206
Application:Home Appliance
Keypad Button Material:Metal
Button Color:Customized
Button Option:Flat or Emboss
Emboss Type:Pillow/Dome/Border Emboss
Dome Type:Mylar/Poly Dome, Metal Dome
Overlay Color:Pantone or RAL-color Number
Back Adhesive:3M467,3M468,3M9080 etc.
Material:PET(polyester)/PC(polycarbonate)
Surface Finish:Glossy or Matte
LED Color:White/Green/Red/Customized
Rear Adhesive:3M467, 3M468, 3M9080 etc...
Video Description

OEM dash board panel for car membrane instrument sticker overlay

Product Description



What is Membrane Switch?

The membrane switch is a momentary switching device that is manufactured by using a series of flexible layers of polymer films and adhesives. The top layer, called a graphic overlay, is manufactured by printing on the down surface of transparent polyester or polycarbonate film. Membrane switches can be constructed of multiple circuit layers, and more optimized graphic design features, such as domed key embossing. Designs that are more complex require more material layers for proper construction and reliable operation. Membrane switches, when combined with components such as a tactile dome, graphic overlay, or integrated LEDs or resistors can provide the designer with virtually limitless capabilities to create the ideal custom user interface for their products.

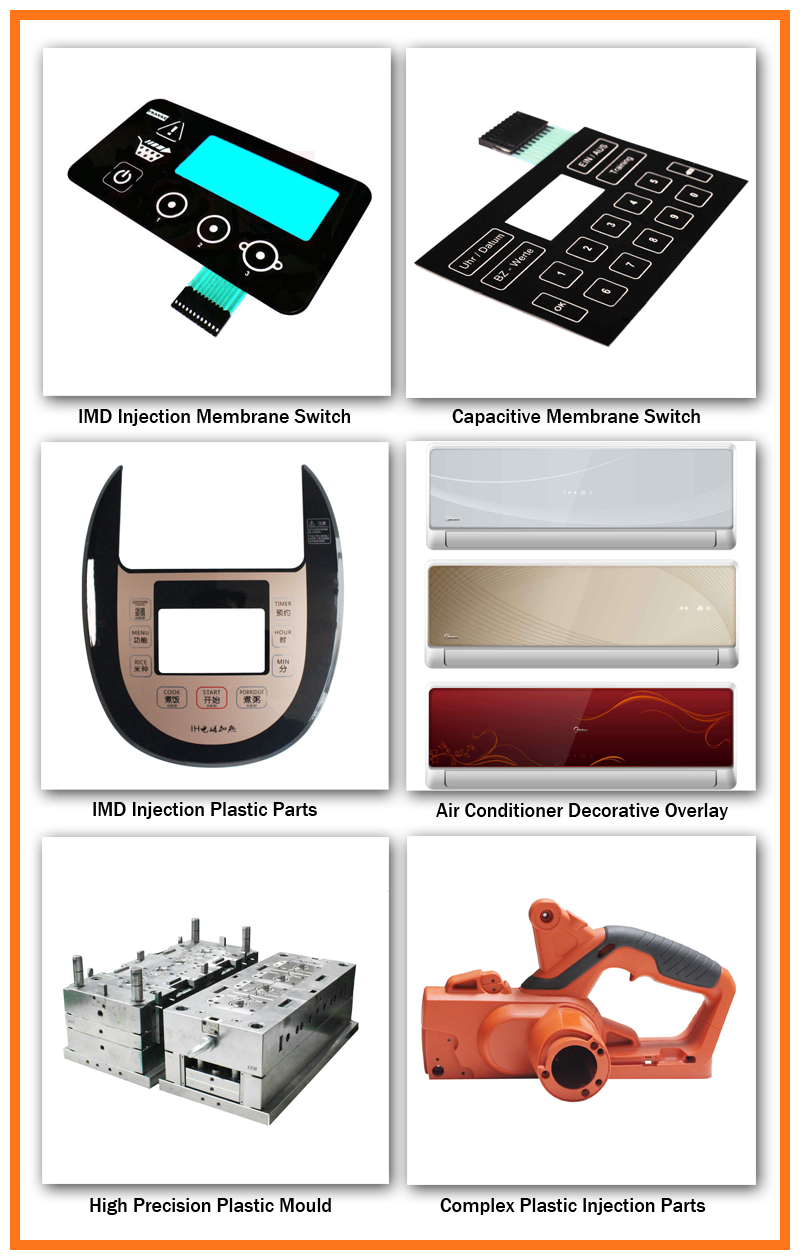

Similiar Products we made:
