Unigreat car bus seat pressure sensor mat pad for passenger remind safety with Seat belt latch Buckle clip buzzer hummer

这里可以自定义设置
Unigreat car bus seat pressure sensor mat pad for passenger remind safety with Seat belt latch Buckle clip buzzer hummer
B站不支持收货地址
B站不支持库存规格
Lead_Time
1 - 100(Pieces):7(days),101 - 1000(Pieces):12(days),1001 - 5000(Pieces):16(days),>5000(Pieces):Negotiable(days)
samples
$9.00/Piece, 1 Piece (Min. Order)
shipping
Sea freight
Customization
Customized logo (Min. Order: 1 Pieces),Customized packaging (Min. Order: 1 Pieces),Graphic customization (Min. Order: 1 Pieces),custom materials (Min. Order: 1 Pieces),custom dimensions (Min. Order: 1 Pieces)
参数暂无数据
多属性暂无数据
B站不支持优惠卷
暂无分享
B站不支持产品保障
Overview
Quick Details
Car Fitment:GEELY
Model:BO YUE
Year:2018-2019
Place of Origin:Guangdong, China
Brand Name:Unigreat
Model Number:JYS-N-190917
Speaker:with Speaker
Speaker Language:Language can be custom make
Pressure sensor:with one Pressure sensor
Safety belt:with one Safety belt
Buckle:with one Buckle
Power cable:Usually one meter
Adhesive for sensor:3M9448
Rated voltage:12-24V
Warranty:2-3 years
OEM OBM ODM:Yes
Video Description

Unigreat car bus seat pressure sensor mat pad for passenger remind safety with Seat belt latch Buckle clip buzzer hummer

Product Description

What is car/bus seat pressure membrane sensor ?

The Car seat sensors is a film type contact sensor, the Car seat sensor's contact points are evenly distributed on the seat's stressed surface, Car seat sensors Generate a trigger signal when the seat receives a pressure from the outside. The Car seat pressure sensors applies to the car seat occupancy perception system, Such as car seat belt alarm sensor system, Taxi automatic meter, car Airbag sensing system and Driver's departure sensing. For example with this Car seat sensor, It can sense whether there are people on the seat or not, Airbags will not open if there is no one. When the driver leaves the seat, the car will automatically return to neutral. People Design car seat sensor shape and contact points' sensitivity According to the car seat's shape, hardness, and skin tightness.



The car seat pressure sensors usually contain four layers, up circuit layer, between adhesive layer, down circuit layer and back adhesive layer. Other accessories are wire cables and connectors.



Similar Products Images.

Basic Properties .

                                                                           Electrical Properties:

Rated Voltage

≤50V DC

Rated Current

≤ 100mA

Operating Power

≤1W

Insulation Resistance

≥100MΩ (250V DC)

Loop Resistance

10Ω~2kΩ (based on the design)

Contact Resistance

0.5 ~ 5Ω

Wire Lead Resistance

<1Ω/cm

Base Material Voltage Withstand

1500V DC

                                                                        Mechanical Properties:

Life Expectancy

More than 10 years (more than 5 million times)

Operation Force

More than 500g

Tail Bending Performance

≤180°

Vibration

20G's max.

Thickness

0.7~2 mm

                                                                      Environmental Properties:

Operation Temperature

-40°C to +90°C (-40°to 176°F)

Storage Temperature

-40°C to +90°C (-40°to 185°F)

Atmospheric Pressure

86 ~ 106 kPa

Humidity

+40°C, 90%~95%RH for 480 Hours



The Structure and Working Principle of car seat pressure membrane sensor.

Working principle:

When someone is sitting on a car seat, The car seat surface is subjected to a pressure, This pressure makes the upper and lower circuit layers of the seat sensor contact each other, Thus, the circuit loop is turned on conductive to generate a signal to other devices, Showing someone is sitting on the car seat, and, other systems in the car will use this signal to work, For example, the seatbelt warning system will detect if the person on the car seat whether put a seat belt on himself.

Other Features.

                                                                           Other Features

Artwork/Drawings Format

CorelDraw, Adobe Illustrator AI, AutoCAD

Tail/Pin/Circuit Layout

Based on customers detailed requests

Antistatic Shielding

Can be added For Protection

Connector

Female/Male Connectors or ZIF Connector

Rear Adhesive:

3M467, 3M468, 3M9080 etc…

Cables

Extension of Circuit and Connect with your Device

Printing Method

Silk Screen Printing/Digital printing

Silk screen printing ink type

Silver paste, Carbon paste, dielectric oil.

Certificate

ISO9001  RoHS  CE  SGS

Unigreat car bus seat pressure sensor mat pad for passenger remind safety with Seat belt latch Buckle clip buzzer hummer, Unigreat car bus seat pressure sensor mat pad for passenger remind safety with Seat belt latch Buckle clip buzzer hummer, Unigreat car bus seat pressure sensor mat pad for passenger remind safety with Seat belt latch Buckle clip buzzer hummer

Production Process.

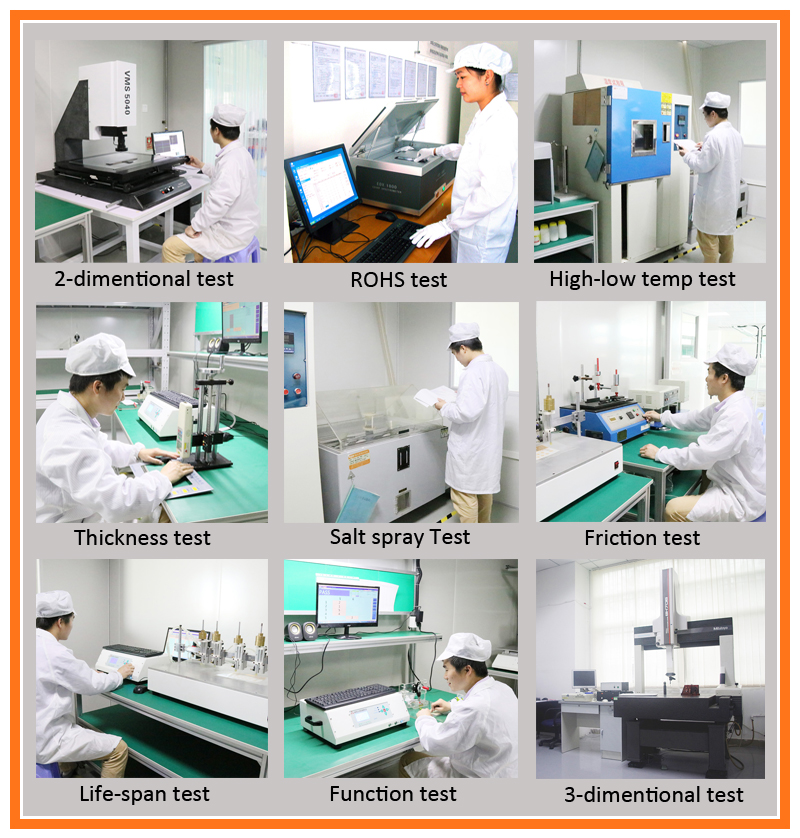

Quality Control.

Application

Wide range of applications:

Packaging & Shipping

Packaging: Normally a certain amount of products into poly bag, then packed into master carton. Or customized packed.

Shipping: Via Air Express like DHL UPS FedEx TNT, or Via Sea shipping.

Customized Solutions

Our Advantages:

1.We are a factory with total about 500 staff, 200 thousands square meter. Throughout production process our quality is strictly being controlled with detailed record. All of our machines were upgraded ONE year ago and brand new.

2.With more than 18 years experiences of 10 Designers and 18 Engineers, so customized product service is No problem, we can offer you the best solutions.

3.You will get fairly competitive prices with fantastic quality products. Also the packaging, delivery time and after-sales services are guaranteed, we have a powerful and professional team.

Company Information

UNIGREAT was founded in 2001 in Shenzhen Nanshan Xili Town, formerly known as Jia Yi Da Hardware Plastic Factory. In 2004 we moved to Shenzhen Bao’an Shiyan Shilongzai for expanding the scale, now we own UNIGREAT industrial park over 200 thousands square meter. Since then we bought many machines , such as big plastic injection machines, large CNC machines, electrical discharge machines, and wire-electrode cutting machines.



Meanwhile, the Membrane Switch Department/ Decoration Panel Department/ IMD Department were established, together with Mould Department and Injection Department now we have 5 Departments, total staff more than 500 people. Also we purchased more important machines like Automatic screen-printing machines, Infrared Drying machines, Automatic cutting machines, and Automatic Laser Cutting Machines.



With more than 18 years serving The world's top 500 companies like Midea, Gree Flextronics, Haier, LG, Samsung and Galanz, we are qualified to serve oversea customers and brands. Choose to cooperate with us, you will have totally fresh and fantastic experiences.

Certificates:

Other Related Products:

Our Customers:

Why choose us

Favorable Comments



Since 2001, UNIGREAT has designed and manufactured the best quality, OEM/ODM Car seat pressure membrane sensors, Membrane Switch, Capacitive touch Switch, Graphic Overlay, Precision Plastic Mould and Plastic Injection Parts, and then custom all kinds of Membrane Switch, seat pressure membrane sensors, Graphic Overlay, IMD Plastic Injection Parts, Plastic Injection Parts and High Precision Plastic Mould. All of the above products are engineered and manufactured in our own UNIGREAT industrial park which over 200 thousands square meter with almost 500 staff located in Shenzhen, China.





Unigreat car bus seat pressure sensor mat pad for passenger remind safety with Seat belt latch Buckle clip buzzer hummer



This product is ideal for many goods, brands, and applications and is certain to highlight the good and elevate customer perception. This product is ideal as a marketing, branding, or advertising tool because it increases merchandise visibility, attracts attention and maximizes brand awareness.
